| Place of Origin | CHINA |
| ブランド名 | ROSCHEN |
| 証明 | ISO |
| Model Number | BQ NQ HQ PQ |

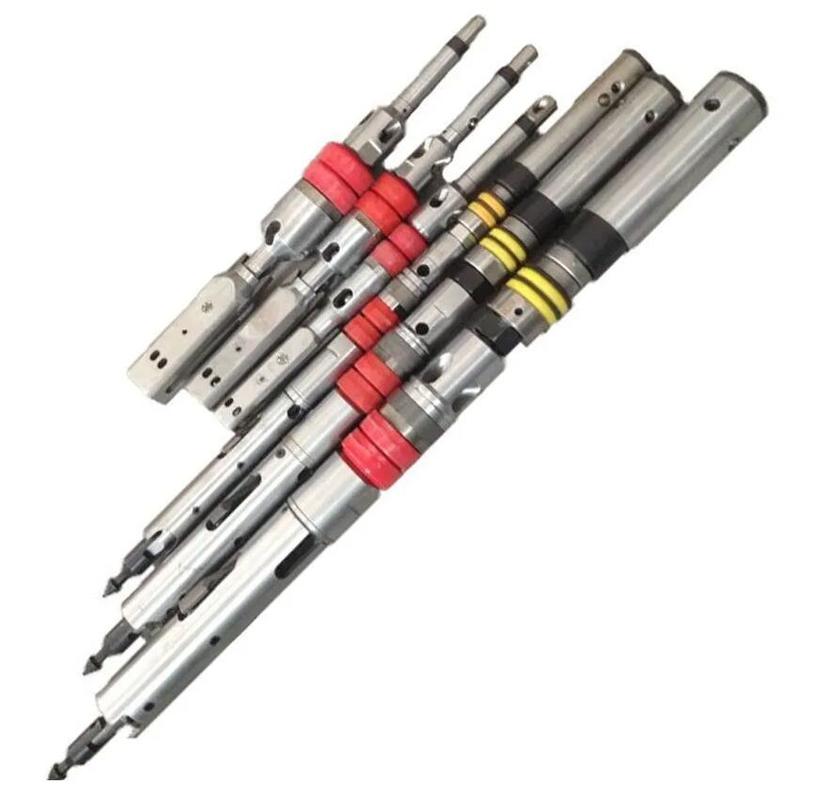

Wireline core barrel for australia exploration diamond core drilling
Wireline core barrel for australia mineral exploration diamond core drilling
During wireline core drilling operation, the core samples are recovered quickly by retrieving the inner tube directly through the drill string, other components including wireline drill rods etc remain in the hole until the drill bits needs to be replaced, vast of costs are saved when drilling deep holes for mineral exploration.
Standard wireline double tube core barrel are applicable for most drilling conditions, while wireline triple tube core barrel are mainly used for coal, clay bearing or highly fractured drilling formations. A split steel tube inside the inner tube retains the core sample in its received state for easier loading into core trays or for storage. The core lifter, core lifter case and stop ring are different from the standard double tube core barrel, a little smaller in diameter to retain the slightly smaller core.
Wireline core barrel advantages:
. Fast coring speed
. Good stability
. Good core recovery
Roschen provide wireline double tube and triple tube core barrels with superior performance and obtain the full recovery of the sample in any application of diamond / wireline core drilling.
Core barrel part details:
| Item | Name | Qty |
| 1 | Head assembly | 1 |
| 2 | Inner tube | 1 |
| 3 | Stop ring | 1 |
| 4 | Core lifter | 1 |
| 5 | Core lifter case | 1 |
| 6 | Locking coupling | 1 |
| 7 | Adapter sub | 1 |
| 8 | Landing ring | 1 |
| 9 | Outer tube | 1 |
| 10 | stabilizer | 1 |
| 11 | Thread protector case | 1 |
| Weight | Item 1 (kg) | Item 2-11 (kg) |
| BQ 1.5m length | 6.5 | 24.8 |
| BQ 3.0m length | 6.5 | 35.8 |
| NQ 1.5m length | 12.5 | 37.2 |
| NQ 3.0m length | 12.5 | 59.7 |
| HQ 1.5m length | 19.2 | 49.5 |
| HQ 3.0m length | 19.2 | 87.3 |
| PQ 1.5m length | 30 | 72.5 |
| PQ 3.0m length | 30 | 117 .0 |
